1. 0445110316 CR Fuel Injector Introduction

1.1.0445110316 CR Fuel Injector Basic Information

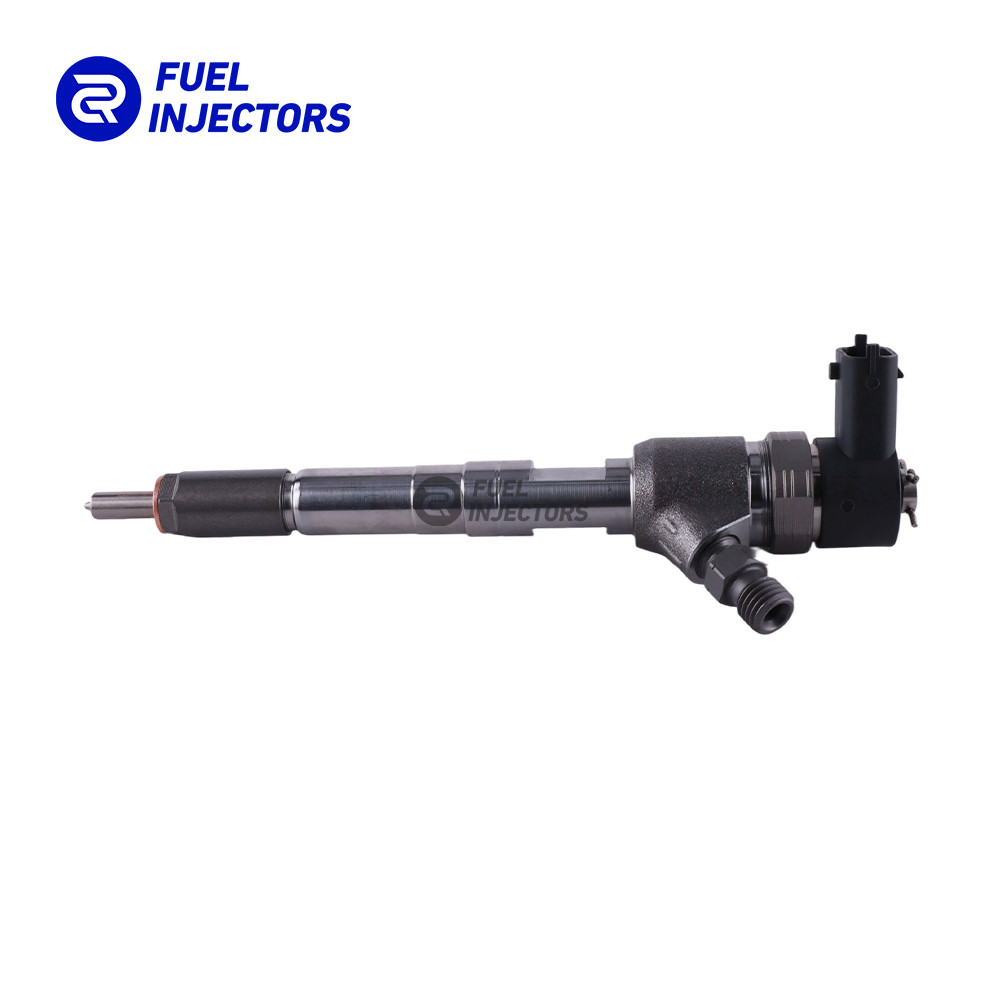

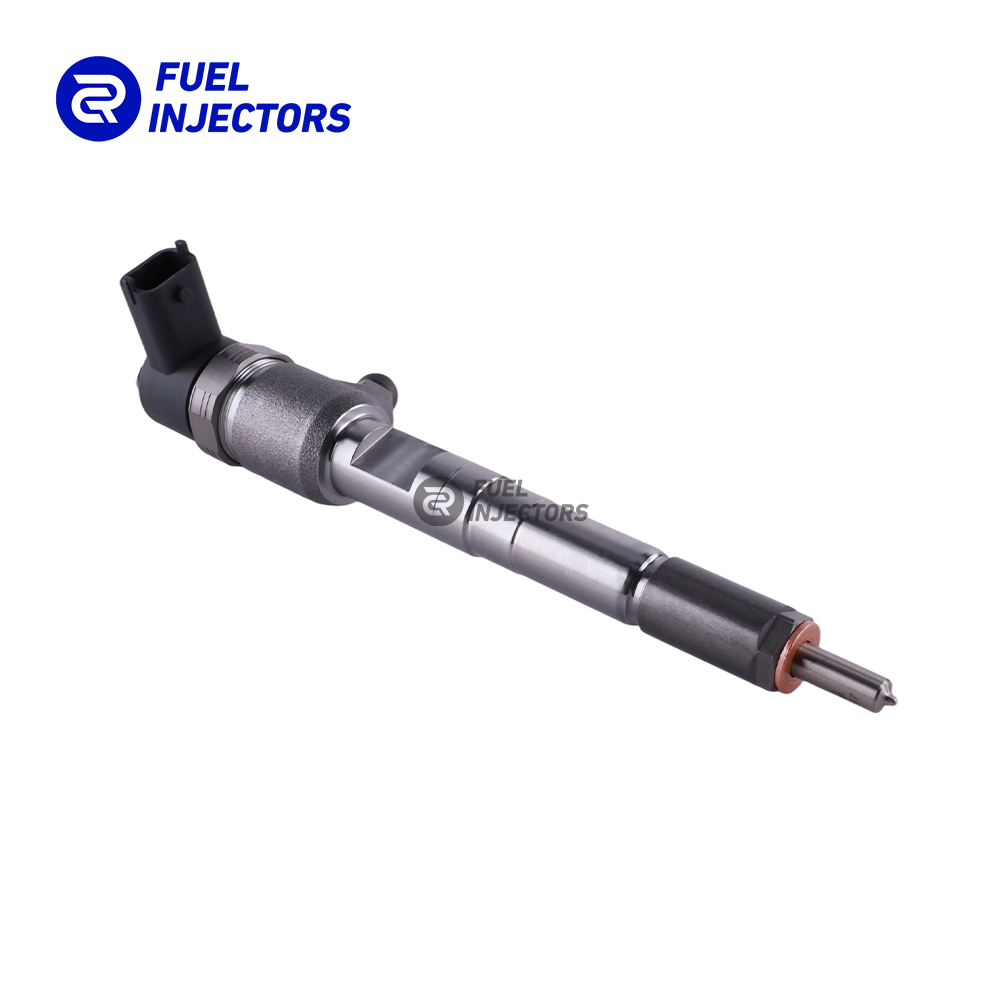

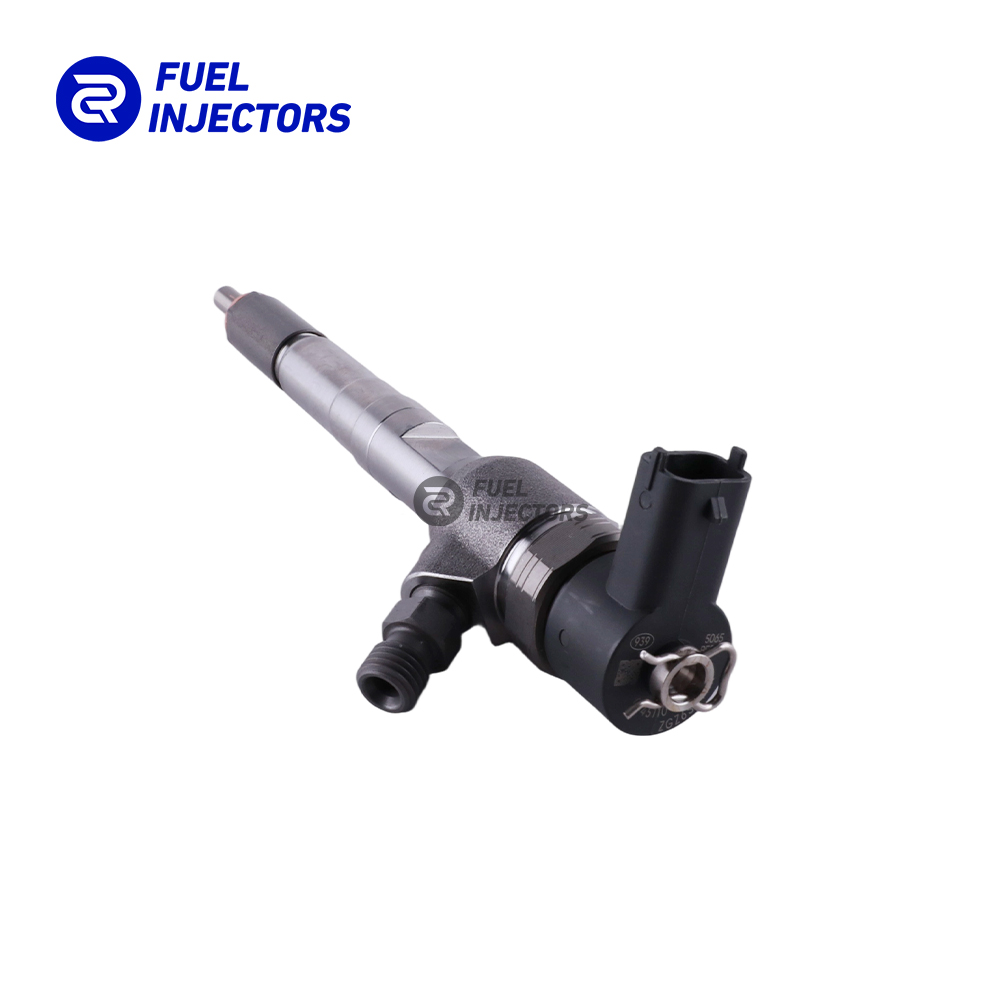

Title	0445110316 CR Fuel Injector  CRI2-16 China Made New
SKU	G1W20445110316

1.2. 0445110316 CR Fuel Injector Common Information

• CR Fuel InjectorExchange Information

CR Fuel Injector Part Number	Re-manufactured Part Number
0445110316	0 986 435 226



• CR Fuel InjectorApplication Information

Common Rail Diesel Injector Part Number	SUZUKI  Car Model
0445110316	15710 86J20 000
	1571086J20
0 986 435 226	15710-86J20
	15710 86J20 000



• CR Fuel InjectorMatching Information

Vehicle brand	Series	Car Model	Engine Model	Production Date	Power (KW)	Horse Power	Emission Standards	Manufacturer	Emissions (L)	Cylinder	Power Source (V)
MARUTI	Ertiga [R3]	Ertiga 1.3 TD	D13A	04/2012 –	66 kW	90 PS	/	/	/	4	12
MARUTI	Ritz	Ritz 1.2D	D13A	05/2009 –	55 kW	75 PS	/	/	/	4	12
MARUTI	SX4 [YY4]	SX4 1.3D	D13A	02/2011 – 08/2014	66 kW	90 PS	/	/	/	4	12
MARUTI	Swift [YN2]	Swift 1.3 Dzire TD	D13A	03/2008 –	56 kW	76 PS	/	/	/	4	12
MARUTI	Swift [YN4]	Swift 1.3 Dzire TD	D13A	02/2012 –	56 kW	76 PS	/	/	/	4	12
MARUTI	Swift [YN2]	Swift 1.3 TD	D13A	01/2007 – 07/2011	56 kW	76 PS	/	/	/	4	12
MARUTI	Swift [YP8]	Swift 1.3 TD	D13A	08/2011 –	55 kW	75 PS	/	/	/	4	12
SUZUKI	Baleno [YRA]	Baleno 1.3 TD	D13A	10/2015 –	55 kW	75 PS	/	/	/	4	12
SUZUKI	Splash [A5B]	Splash 1.3 DDiS	D13A	01/2008 – 10/2010	55 kW	75 PS	/	/	/	4	12
SUZUKI	Splash [A5B]	Splash 1.3 DDiS	Z13DTJ	01/2008 – 10/2010	55 kW	75 PS	/	/	/	4	12
SUZUKI	Swift [MZ/EZ] Hatchback	Swift 1.3 DDiS Diesel Turbo Hatchback	D13A	02/2008 – 12/2014	55 kW	75 PS	/	/	/	4	12
SUZUKI	Swift [MZ/EZ] Hatchback	Swift 1.3 DDiS Diesel Turbo Hatchback	Z13DTJ	02/2008 – 12/2014	55 kW	75 PS	/	/	/	4	12
SUZUKI	Swift [MZ/EZ] Hatchback	Swift 1.3 DDiS Diesel Turbo Hatchback	Z13DT	08/2005 – 12/2014	51-55 kW	69-75 PS	/	/	/	4	12



1.3. 0445110316 CR Fuel Injector Parameter

CR Fuel Injector Adaptation System: Common Rail System

CR Fuel Injector Series: 0445110 Series

CR Fuel Injector Parameter Performance:  CRI2-16

CR Fuel Injector Matching Accessories： F 00V C17 503, Shaft Gasket

CR Fuel Injector Type: Electromagnetic CR Fuel Injector

Support System Maximum Pressure: 1600

Vehicle Configuration Information: For SUZUKI

CR Fuel Injector Size: 21cm*7 cm *6 cm

CR Fuel Injector Net Weight: 0.45kg

CR Fuel Injector Gross Weight: 0.6kg

CR Fuel Injector Quality: China Made New

CR Fuel Injector Package Size: 28cm*7 cm *7 cm

CR Fuel Injector Type: Common Rail CR Fuel Injector

CR Fuel Injector MOQ: 4 Pieces

2. 0445110316 CR Fuel Injector Customized Service

• CR Fuel InjectorCustomized Service Coverage: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, CR fuel injector internal packaging, CR fuel injector external packaging and labels customized, etc.

No.	1	2	3
Name	CR Fuel Injector Nozzle Engraving	CR Fuel Injector Solenoid Valve Engraving	CR Fuel Injector Box And Label



• CR Fuel InjectorCustomized Service Requirements：
• The purchaseof customized CR fuel injectors are not less than 10
• The purchaseof customized CR fuel injector packages are no less than 1000

When the customized products involve the need of specify logo, the OEM manufacturer is asked to provide trademark authorization and the sample of logo image file.

Once the customized CR fuel injector is sold, it cannot be returned or exchanged if there is no quality problems.



3. 0445110316 CR Fuel Injector Quality Control

• CR Fuel InjectorTesting

All CR fuel injectors are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.

• CR Fuel InjectorAssembling

For quality control during the production and installation process of CR fuel injectors, our company strictly follows the standard product installation data and product installation steps for installation and testing, such as injector stroke test, injector solenoid valve tightening torque test, injector nozzle tightening torque test, etc.

• CR Fuel InjectorInspection

The factory inspection of the CR fuel injector is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same CR fuel injector for more than three times for factory inspection, and the CR fuel injector installation testing environment are progressed in dust-free workshop.



4. 0445110316 CR Fuel Injector Warranty Instructions

• Product Warranty Conditions and Instructions

It is necessary to provide pictures, videos, or test reports detected by the CR fuel injector inspection equipment as evidence to feed back to the salesman when the CR fuel injector is abnormal during using.

Abnormal conditions are properly explained such as：1.Smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5. Oil leakage etc.

• CR Fuel InjectorWarranty Coverage

Within 15 days after customer receives the 0445110316 CR fuel injector, if there is a performance failure and the product has no appearance damage, customer can choose to replace it or repair it;

If the 0445110316 CR fuel injector has performance problems during the warranty period (6-12 months), and it is confirmed that it is product’s problems after testing, you can contact our salesmen to replace the same model or a reworked product with the same performance for free;

If the CR fuel injector house has obvious scratches, it can only be repaired and it will be returned as it is if the product is confirmed to be fault-free.

• Tips：For products not covered by warranty, our company can provide paid maintenance services. For products after paid repaired, the same performance problem will havea free warranty period within 3 months from the date of repair



5. 0445110316 CR Fuel Injector Purchase and Delivery

5.1. 0445110316 CR Fuel Injector Purchase Payment Term

Payment Terms： T/T, PayPal, Alipay, WeChat

• Pleasecontact our salesmen for specific payment

5.2. 0445110316 CR Fuel Injector Shipping Ways

Destination in China Areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations Out of China’s Areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



5.3. 0445110316 CR Fuel Injector Lead time

Lead Time：Send out within 3 – 7 working days after receiving payment（Except for special products and special cases）.
